1
Connected to two Power Grids (Bavaria / Hesse)
-
Tennet
Connectivity via EVA
This power is delivered from Bavaria
-
Amprion
Connectivity via SYWAG
This power is delivered from Hesse
Extraordinary Location of Karlstein am Main and MainRZ allows Power
Setup according EN50600 Verfügbarkeitsklasse 4 This is the best available possibility to connect a Data Center
2

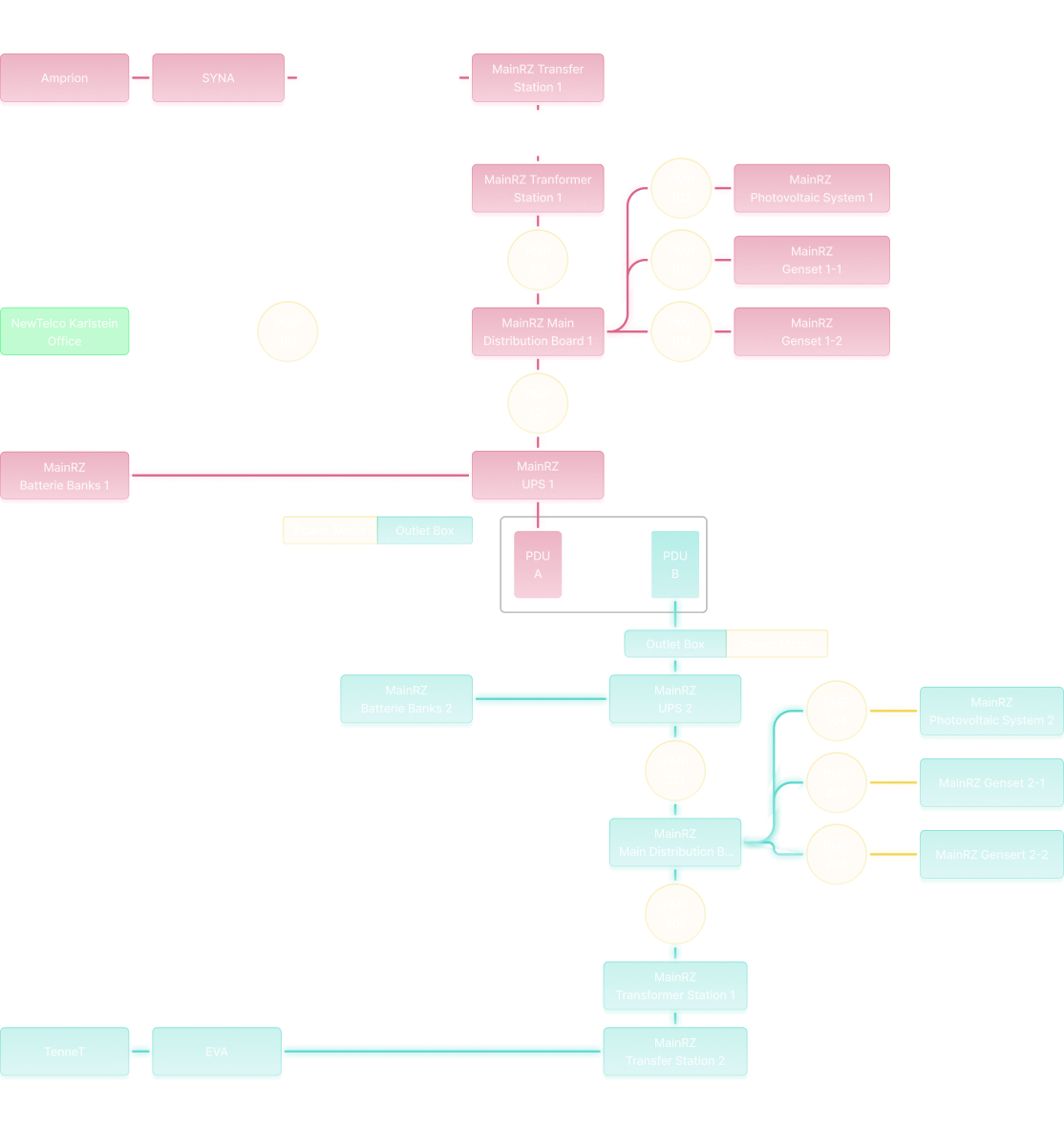

MainRZ - A and B Feed are completely independent up to the Rack
Power is not mixed at any time from Hand Over to the Server
-
Tennet
- Delivered from Bavaria - Own Transformers - Own Diesel Generators - Own UPS - Own Batteries
-
Amprion
- Delivered from Hesse - Own Transformers - Own Diesel Generators - Own UPS - Own Batteries
| Element | Remark |
|---|---|
| Grid A Feed | Grid connected to Amprion via Syna |
| Transfer Station A Feed | Own Building Outer Yard – Fenced |
| Transformer Station A Feed | Own Building Technical Yard – Fenced – 2 Transformer |
| Diesel Generator A Feed | Each DG gets own Container – A and B Feed separated |
| Main Distribution Board A Feed | Dual Vendor Strategy – A Feed based on Siemens |
| UPS A Feed | Dual Vendor Strategy – A Feed Jovy Atlas |
| Grid B Feed | Grid connected to Tennent via EVA – Bayernwerk |
| Transfer Station B Feed | Own Building Technical Yard – Fenced |
| Transformer Station B Feed | Own Building Technical Yard – Fenced – 2 Transformer |
| Diesel Generator B Feed | Each DG gets own Container – A and B Feed separated |
| Main Distribution Board B Feed | Dual Vendor Strategy – B Feed based on ABB |
| UPS B Feed | Dual Vendor Strategy – B Feed ABB |
